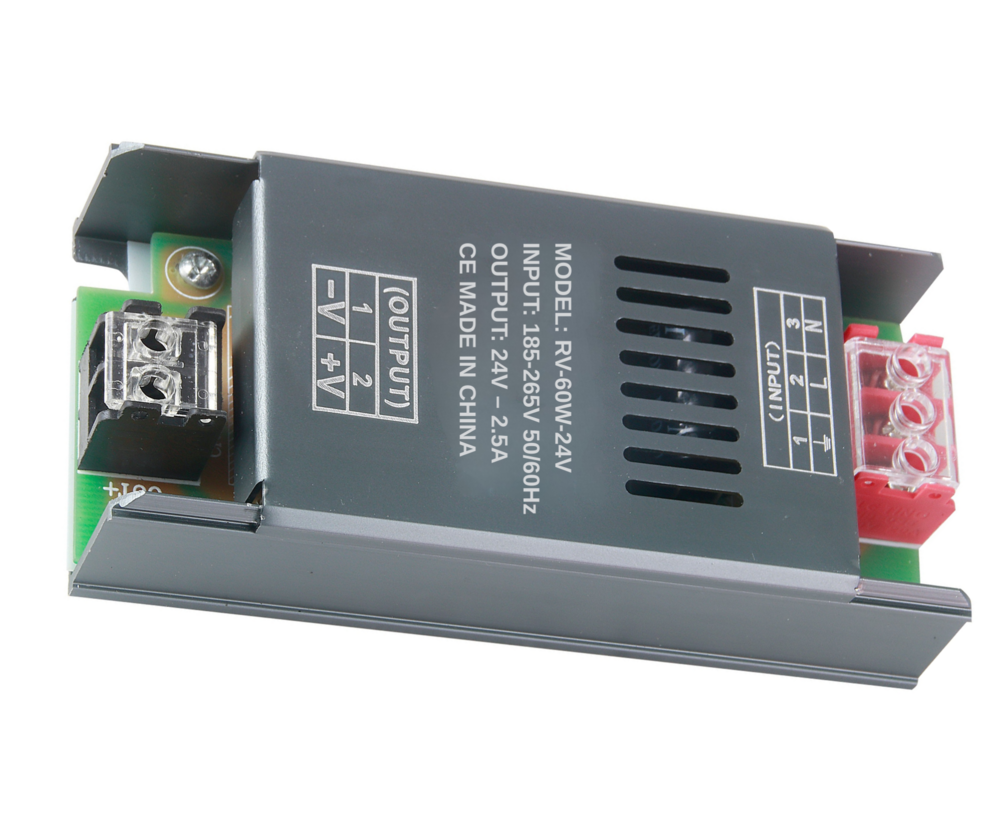

RV-60W-24V
Product Overview
The RV Series LED Driver is a high-performance, constant voltage power supply engineered for reliable and efficient LED lighting solutions. Designed with a universal input voltage and a robust aluminum housing, it provides stable and clean power for a wide range of commercial and residential low-voltage lighting applications.
Key Features
High Efficiency: Up to 80% conversion efficiency, reducing energy waste and heat generation.
Comprehensive Protections: Built-in safeguards against short circuit, overload, over-voltage, and over-temperature to ensure ultimate safety for both the driver and your LED installations.
Robust Aluminum Housing: Provides excellent heat dissipation, ensuring long-term reliability and a extended operational lifespan.
Universal AC Input: Wide input voltage range (AC 180-265V) ensures stable operation even in areas with fluctuating power grids.
Dual Output Voltage: Selectable DC12V or DC24V output offers flexibility for various project requirements.
Long Warranty: Backed by a 3-year warranty for your peace of mind.
Technical Specifications
Parameter | Specification |
|---|---|
Product Type | LED Driver / Power Supply / Lighting Transformer |
Input Voltage | AC 180 - 265V |
Output Voltage | DC 12V or DC 24V (Selectable) |
Output Power | 60W, 100W, 120W, 150W, 200W, 300W, 400W |
Housing Material | Aluminum Alloy |
Efficiency | ≥ 90% |
Operating Temperature | 0°C ~ +60°C |
Storage Temperature | -20°C ~ +60°C |
Warranty | 3 Years |
Detailed Model Comparison Table
Power Rating | Output Current (DC24V) | Output Current (DC12V) | Product Dimensions (MM) |
|---|---|---|---|
60W | 2.5A | 5.0A | 105 x 50 x 24 |
100W | 4.0A | 8.0A | 135 x 50 x 24 |
120W | 5.0A | 10.0A | 170 x 50 x 24 |
150W | 6.2A | 12.5A | 205 x 50 x 24 |
200W | 8.0A | 16.0A | 237 x 50 x 24 |
300W | 12.0A | 25.0A | 226 x 60 x 28 |
400W | 16.0A | 33.0A | 226 x 60 x 28 |
Typical Applications:
Ideal for LED strips, LED modules, signages, cabinet lighting, architectural accent lighting, and other low-voltage LED lighting systems.
